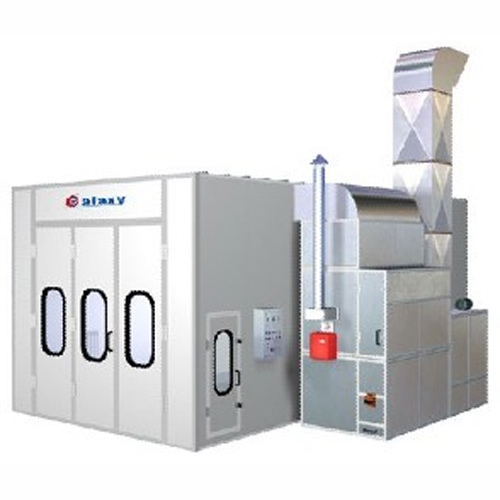

Inside dimension 9200*4500*3500 mm(L*W*H)
Outside dimension 9344*6396*4450mm(L*W*H)
Basement Galvanized steel, quadrate steel frame, height is 350mm. 3 rows of indented plates, 2 rows of grilles. Loading weight: max 3500KGS. 4 ramps, each size is 2000*800mm(L*W), painted blue color.
Main door 3-folds, 3300*3400 mm(W*H),Colour: white
Escape door 1-fold, 700X2000 mm (WXH), Colour: white.
Wall Panels: thickness 70 mm,Width:1150 mm, tongue and groove structure, made by 0.426mm colour steel with polystyrene inside, colour: white.
Lighting Ceiling Lights:12Unitsx4Pcs=48Pcs*36W
Side Lights: 8Unitsx4Pcs=32Pcs*36W, vertically set.
Illuminance: >=450LUX
Glass All glass is clear tempered glass.
Generator setting intake air from side upper direction, exhaust air from rear side direction, quadrate steel frame, outside is white coated steel, inside is galvanized steel.
Intake and exhaust air system 1 unit, 2*7.5KW double-intake centrifugal fans for intake air, model YDW5.6M, air capacity is 20000m3/h for each fan; 1*11KW double-intake centrifugal fan for exhaust air, model TAE-710H, belt-drive, air capacity is 36000M3/H for each fan.
Heating system 1 pc RIELLO RG5S oil burner, Maximum heat productivity is 260000 Kcal/h, 1 stainless steel heat exchanger, electric damper from spraying to baking cycle. Highest working temperature: 80
Filtering system Pre-filter, high efficiency filter(ceiling filter),floor filter(fibreglass), M-shape activated carbon filter, extract fibreglass filter replaced by level side.
Roof Plates Galvanized steel.
Control box Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature control meter, power supply switch, emergency stop, hour meter, limited-temperature device.
Free air speed >=0.25m/s
Power supply as request.
Total Power 29.5 KW
Option: The colour can be Blue, Orange and White.
